Potentiometer

industrial-potentiometer

Through-Hole

tp-through-hole-technollogy



Please click the photo for more information.※左右にスワイプ←→各項目が閲覧できます。
Image Series Dimension Element Total Resistance Value Rating Certificate

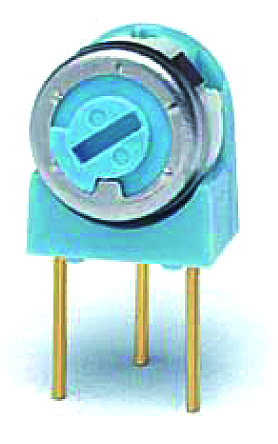

RJC06 Sealed Through-Hole Top adjustment/Side adjustment cermet 10-2MΩ 0.5W at +70℃
RoHS REACH　SVHC

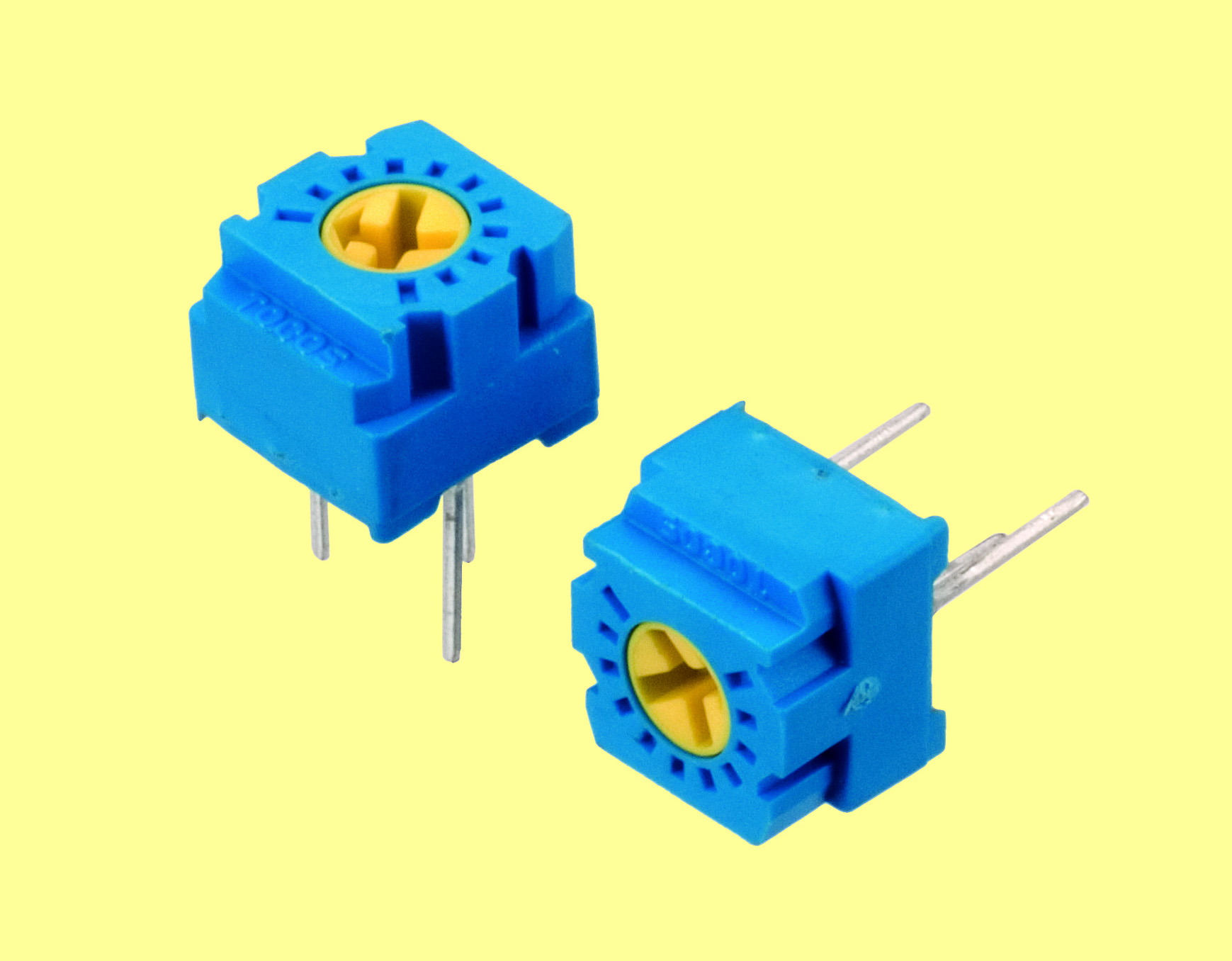

GF063 6mm Sq Sealed Through-Hole Top adjustment/Side adjustment cermet 10-2MΩ 0.5W at +70℃
RoHS REACH　SVHC

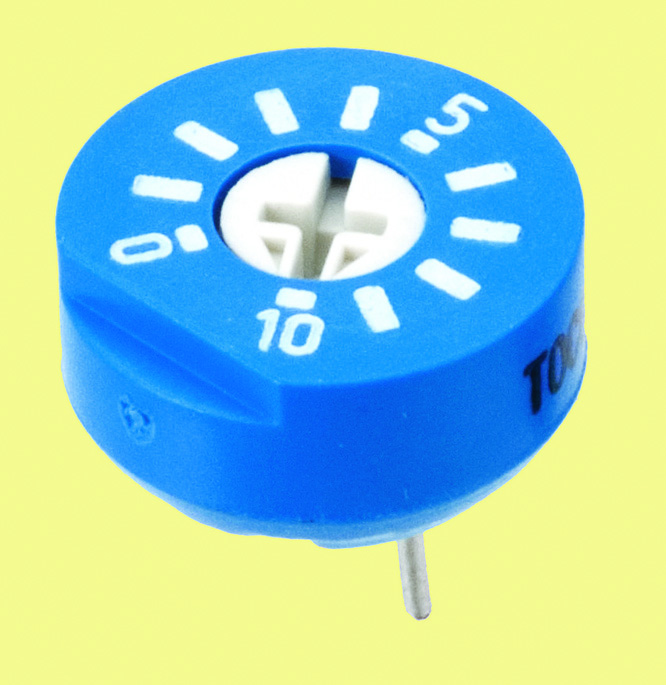

G12 Sealed Through-Hole Top adjustment/Side adjustment cermet 10-1MΩ 1W at +70℃
RoHS REACH　SVHC

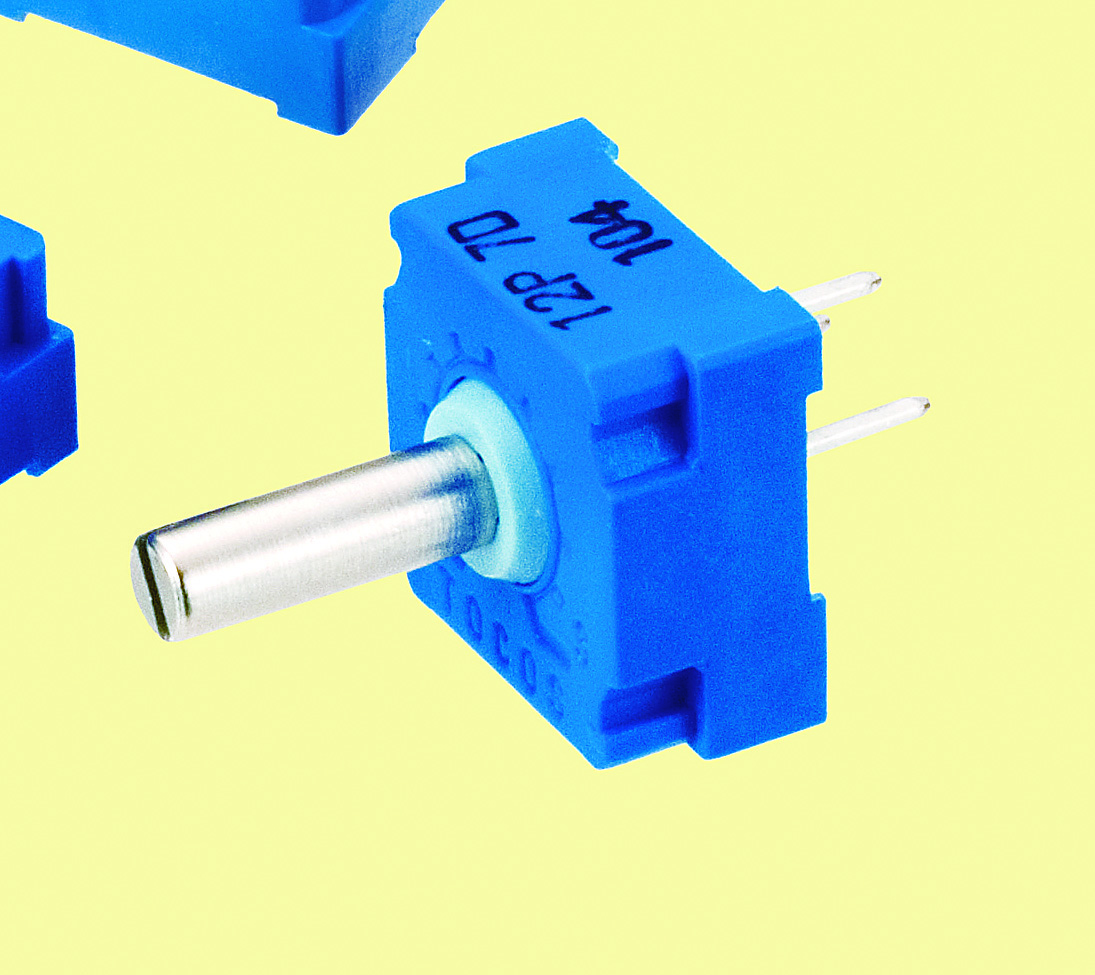

GF12 12mm Sq Sealed Through-Hole Side adjustment cermet 10-2MΩ 1W at +70℃
RoHS REACH　SVHC
RJC097 Sealed Through-Hole cermet 10-1MΩ 0.75W at+70℃
RoHS REACH　SVHC
RJC097PK2 Sealed Through-Hole With knob cermet 10-1MΩ 0.75W at+70℃
RoHS REACH　SVHC
