Please click the photo for more information.※左右にスワイプ←→各項目が閲覧できます。| Image | Series | Dimension | Composition | Total Resistance Value | Rating | Switch Rating | |
|---|---|---|---|---|---|---|---|
 |

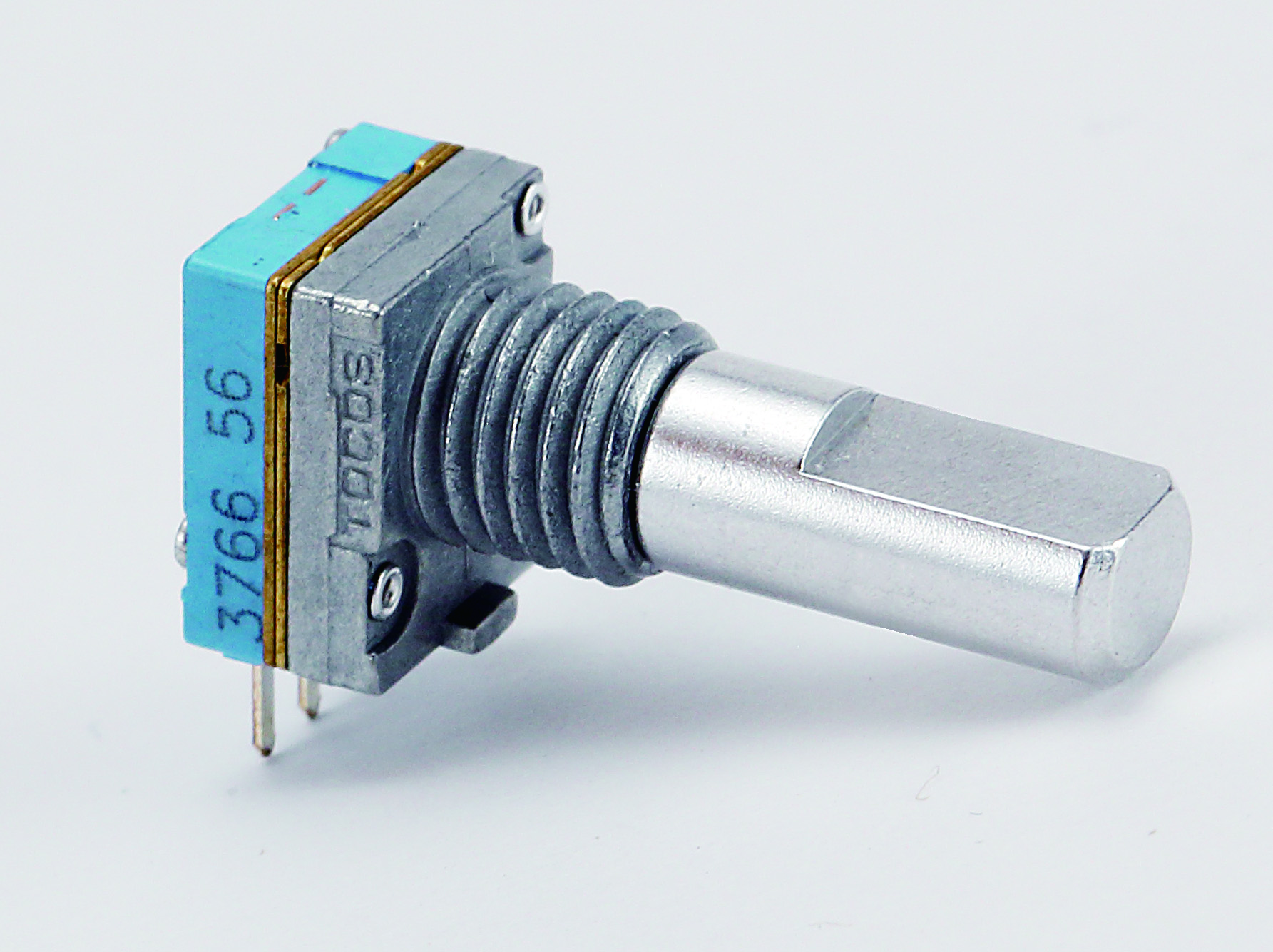

TP70N00E20 | 7mm sq. | Single-shaft, Single-unit Encoder | 20 Detents 10 Pulses | DC5V-1mA | - | |
 |
TP70N00AE20 | 7mm sq. | Single-shaft, Single-unit Encoder Push-On SW | 20 Detents 10 Pulses | DC5V-1mA | DC12V-0.5A | |
 |
TP76D96E20 | 7mm sq. | Dual-shaft, Dual-unit Vol+Encoder | 20 Detents 10 Pulses | DC5V-1mA | - | |
 |
TP70N97E20 | 9mm sq. | Single-shaft, Single-unit Encoder | 20 Detents 10 Pulses | DC5V-1mA | - | |
 |
RH70N00E20 | 7mm sq. | Single-shaft, Single-unit Vertical Encoder | 20 Detents 10 Pulses | DC5V-1mA | - | |
 |

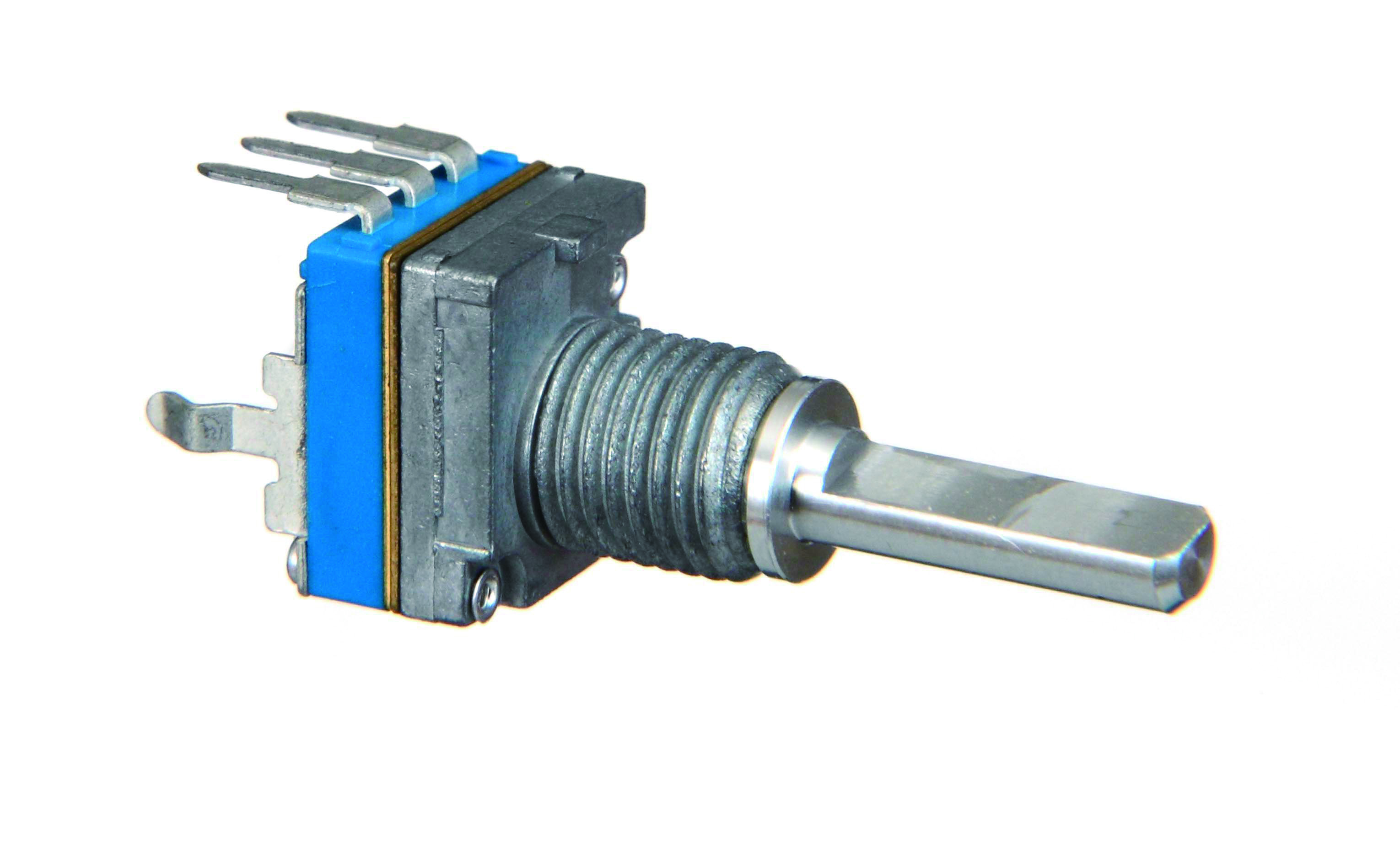

RH90N74E20 | 9mm sq. | Single-shaft, Single-unit Vertical Encoder | 20 Detents 10 Pulses | DC5V-1mA | - | |
 |
TP96D96E20 | 9mm sq. | Dual-shaft, Dual-unit Vol+Encoder | 20 Detents 10 Pulses | DC5V-1mA | - | |
 |
TP90N00AE20 | 9mm sq. | Single-shaft, Single-unit Encoder Push-On SW | 20 Detents 10 Pulses | DC5V-1mA | DC12V-0.5A | |
 |
TP90N00E20 | 9mm sq. | Single-shaft, Single-unit Encoder | 20 Detents 10 Pulses | DC5V-1mA | - | |
 |
RH70N00AE20 | 7mm sq. | Single-shaft, Single-unit Vertical Encoder/ Push-On SW | 20 Detents 10 Pulses | DC5V-1mA | DC12V-0.5A | |
 |

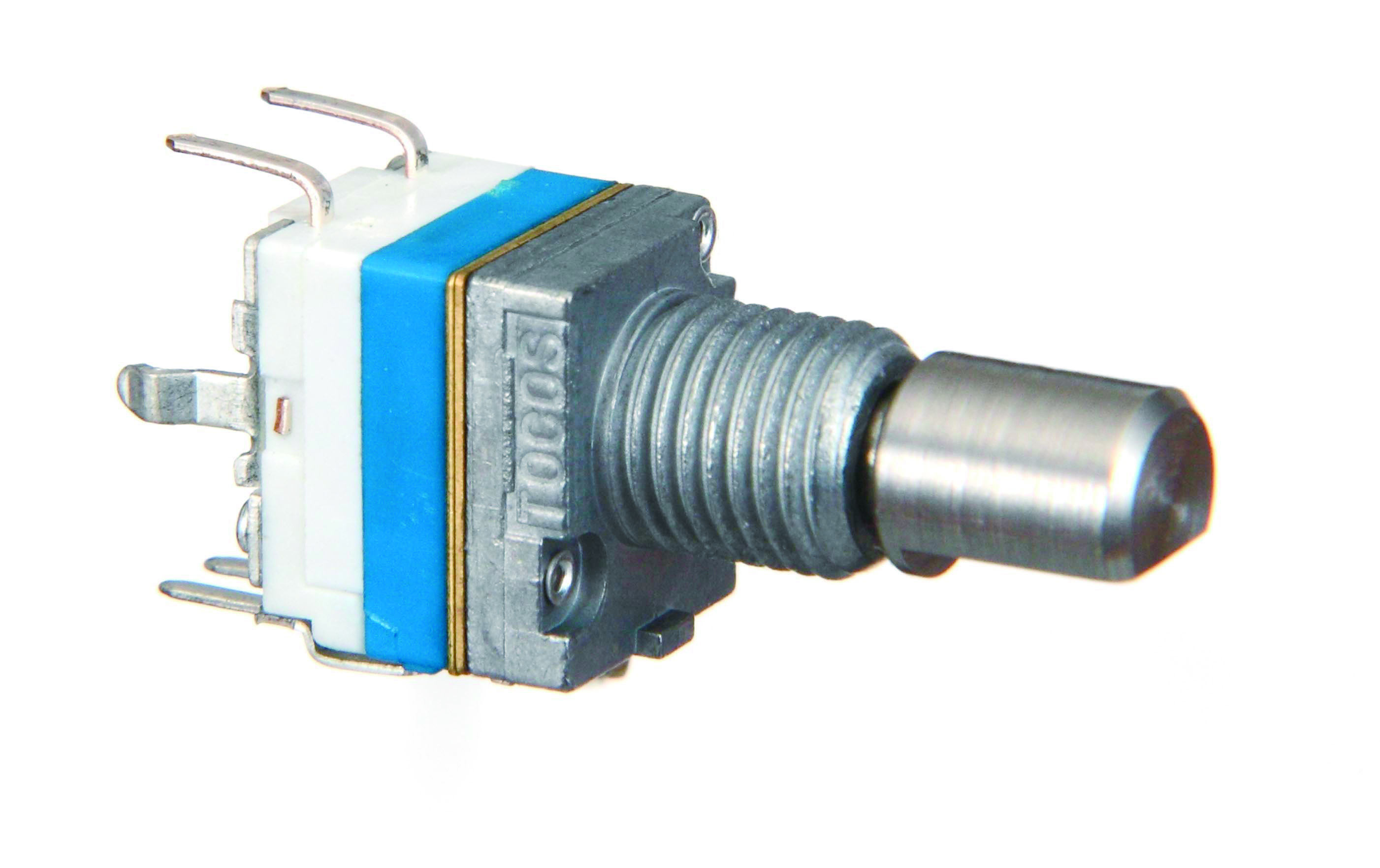

RH90N74AE20 | 9mm sq. | Single-shaft, Single-unit Vertical Encoder/ Push-On SW | 20 Detents 10 Pulses | DC5V-1mA | DC12V-0.5A |
