Please click the photo for more information.※左右にスワイプ←→各項目が閲覧できます。| Image | Series | Dimension | Composition | Total Resistance Value | Rating | Switch Rating | |
|---|---|---|---|---|---|---|---|
 |
TP76N00 | 7mm sq. | Single-shaft, Single-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
TP76G00 | 7mm sq. | Single-shaft, Dual-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |

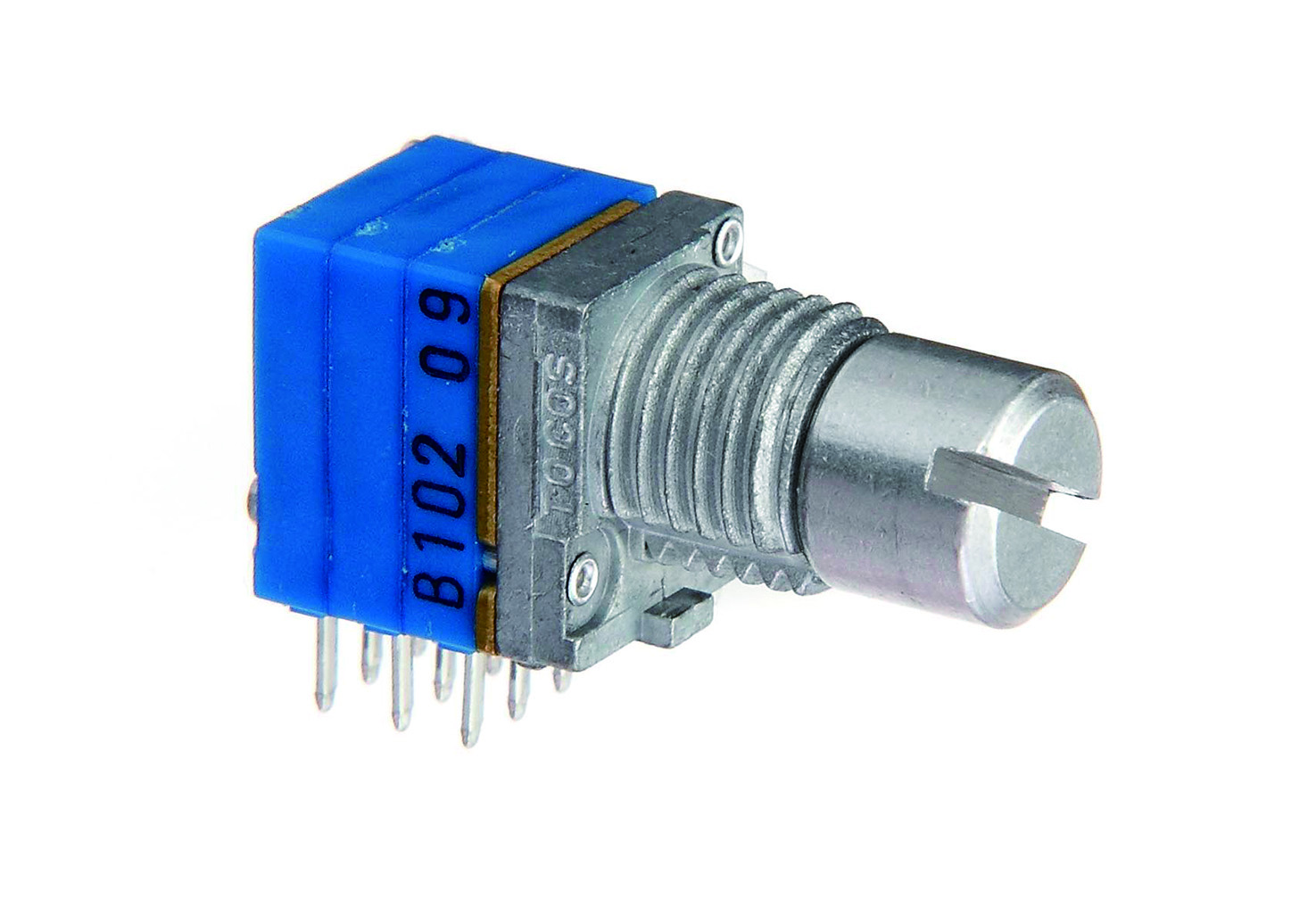

TP76T00 | 7mm sq. | Single-shaft, 3-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
TP76Q00 | 7mm sq. | Single-shaft, 4-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |

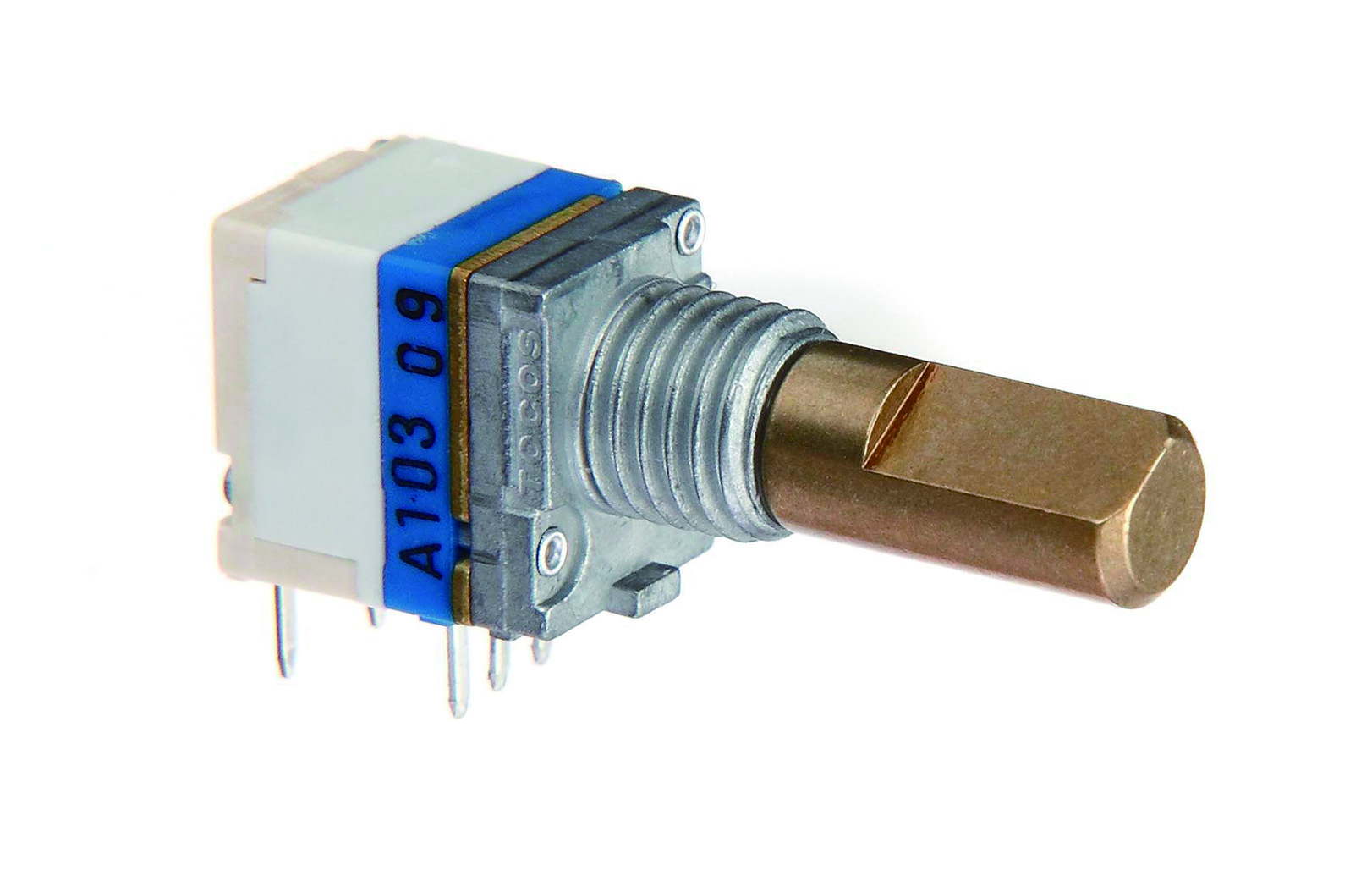

TP76N00N | 7mm sq. | Single-shaft, Single-unit Ro.SW | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | DC16V-3A | |
 |

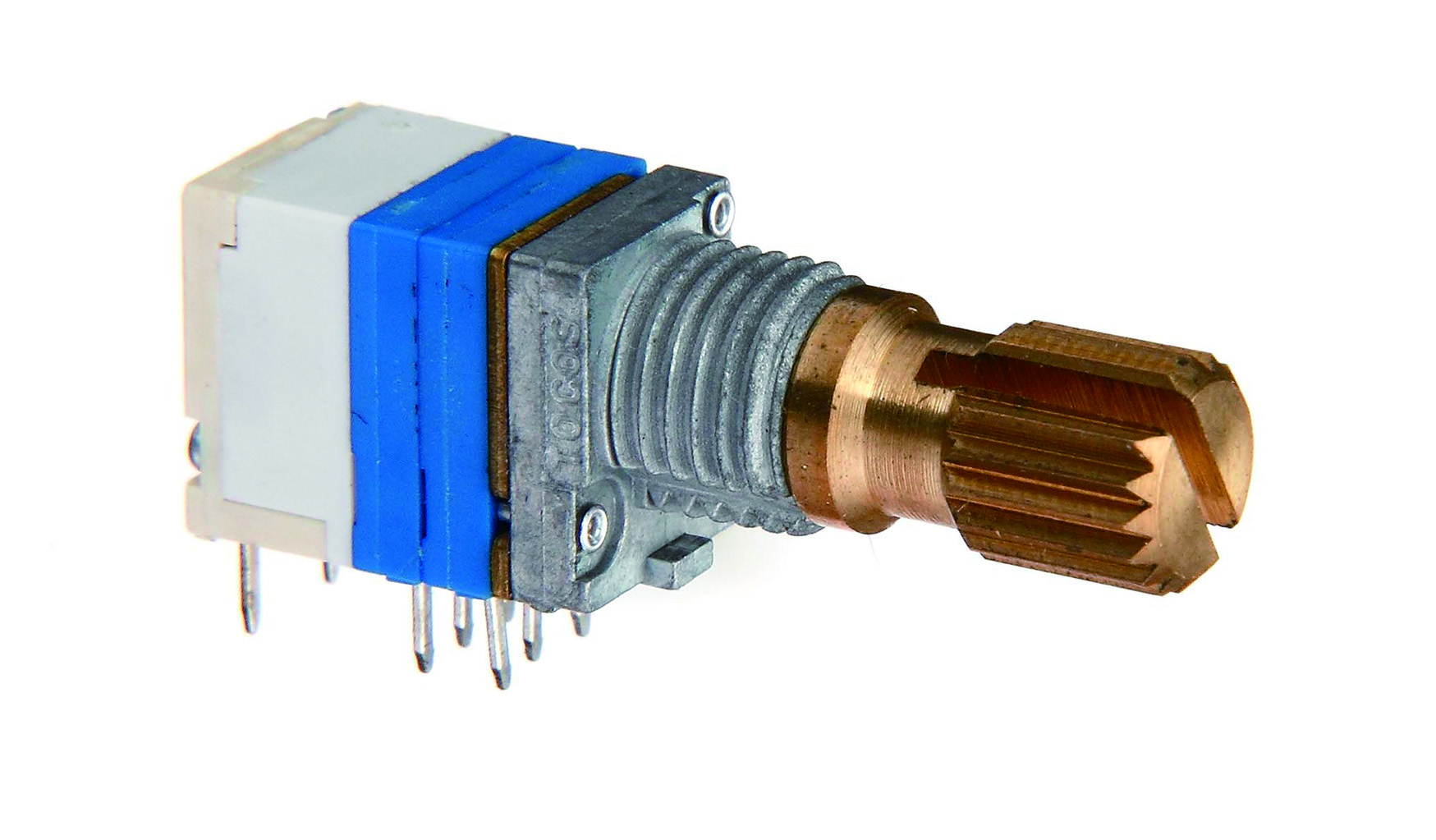

TP76G00N | 7mm sq. | Single-shaft, Dual-unit Ro.SW | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | DC16V-3A | |
 |

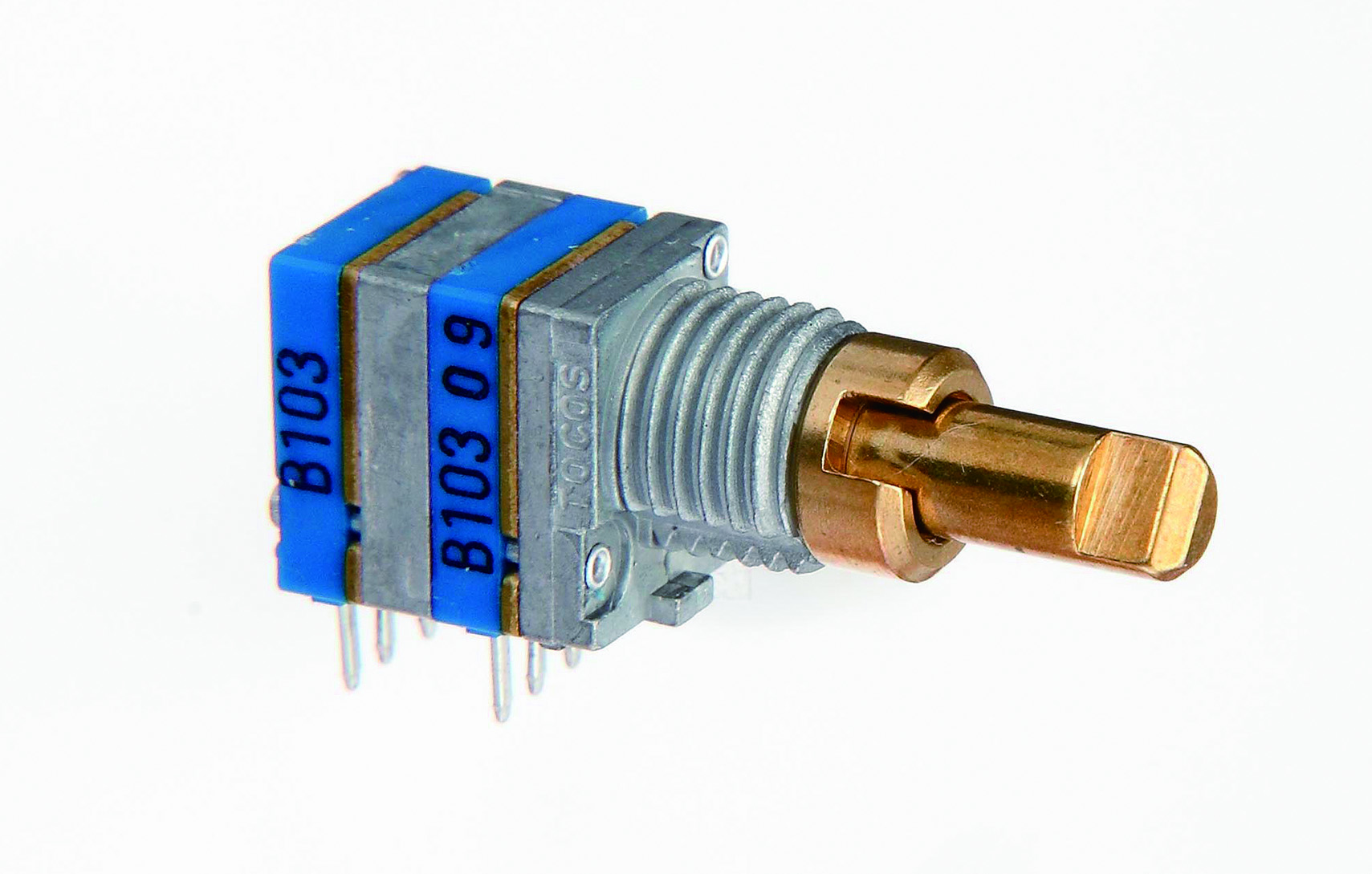

TP76D00 | 7mm sq. | Dual-shaft, Dual-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |

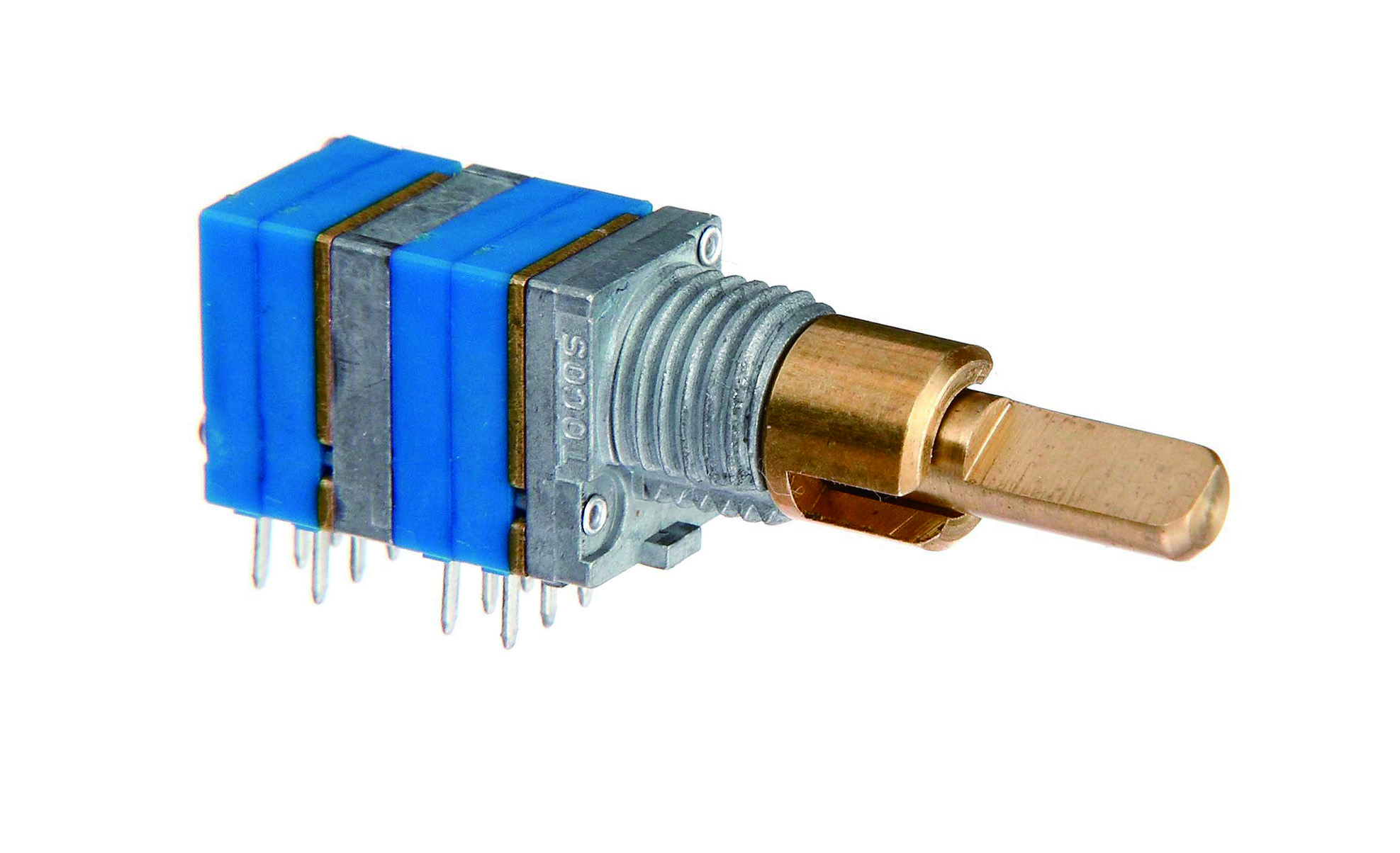

TP76H00 | 7mm sq. | Dual-shaft, 4-unit | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
TP76N00A | 7mm sq. | Dual-shaft, Dual-unit Ro.SW | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | DC12V-0.5A | |
 |

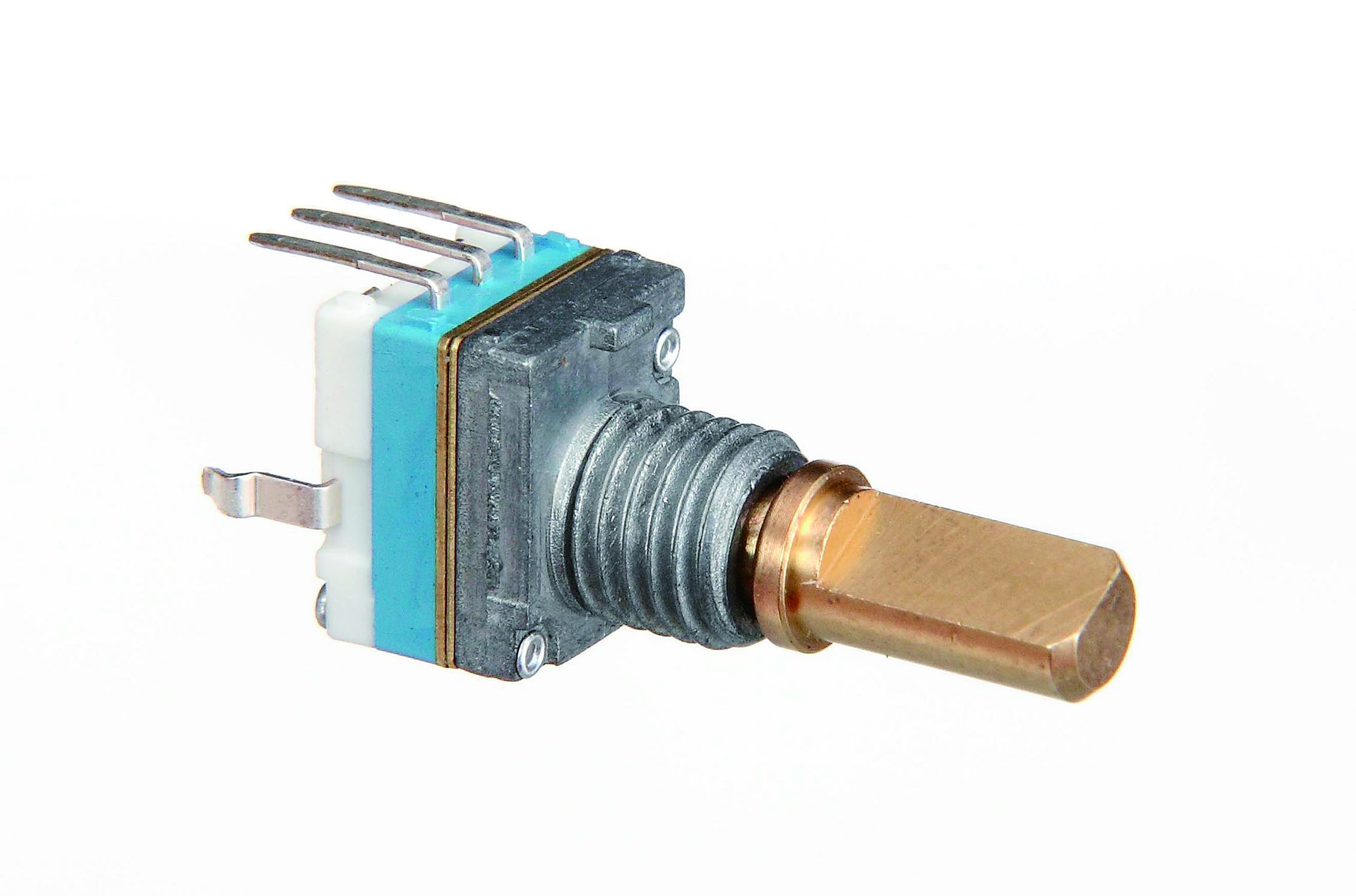

RH76N00A | 7mm sq. | Single-shaft, Single-unit Vertical Push-On SW | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | DC12V-0.5A | |
 |
TP76G00A | 7mm sq. | Single-shaft, Dual-unit Push-On SW | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | DC12V-0.5A | |
 |
RH76N74 | 7mm sq. | Single-shaft, Single-unit Vertical | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | - | |
 |
RH76N74N | 7mm sq. | Single-shaft, Single-unit Vertical Ro. SW | B１kΩ-500kΩ | 0.05W at +50℃ 0W at+70℃ | DC16V-3A |
